Configure DNS on VMware NSX Edge

VMwareNSX

A NSX edge can be used to relay name resolution requests from clients to external DNS servers. As the NSX relay these requests, it caches the response from the DNS server. In this blog post, I will show you how to configure the DNS servers on the NSX edge.

First, navigate the Networking & Security.

dns01

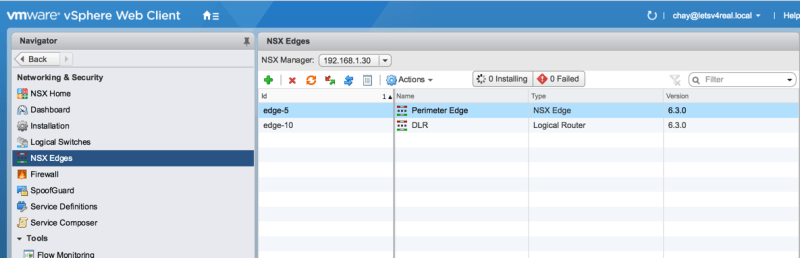

Click NSX Edges and double click your edge device that will be relaying the DNS requests. In my case, it is my Perimeter Edge device.

dns02

Under Manage > Settings > Configuration, click Change on the DNS Configuration box.

dns03

Enter the IP address of the external DNS server(s). Click OK.

dns04

If you refresh the services status menu, you should see the DNS service is Up.

dns05

Now the NSX edge will relay the DNS requests for any VM’s traffic that flow through it, to the external DNS servers.
