Deploying NSX Manager 6.3

VMwareNSX

In this blog post we will be deploying the NSX manager appliance. This is the first step in beginning to deploy NSX in your VMware environment. First things first, after downloading the NSX OVA file, right click on the cluster you want to deploy the appliance in and click Deploy OVF Template. Browse to and select the NSX OVA file and click Next.

man01

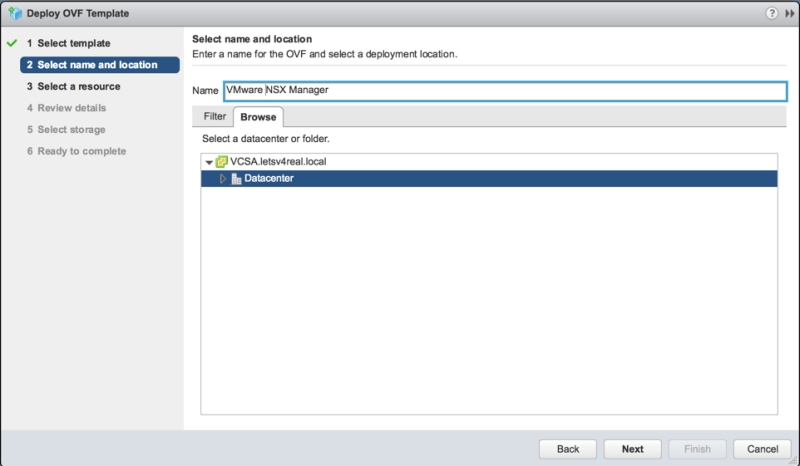

Enter a name for the VM and location. Click Next.

man02

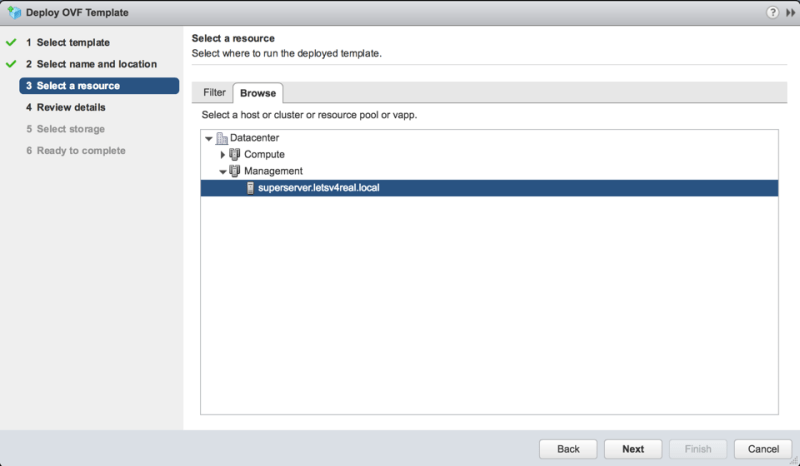

Select a host to deploy to. Click Next.

man03

Click Next

man04_1

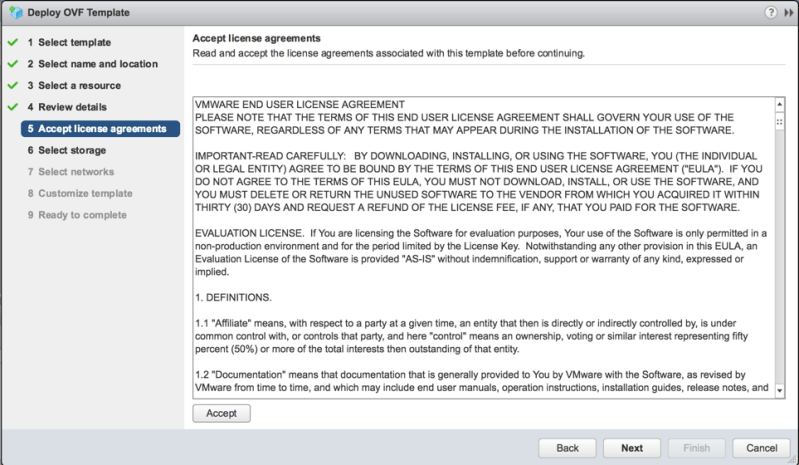

Accept the EULA. Click Next.

man04

Select a storage location. Click Next.

man05

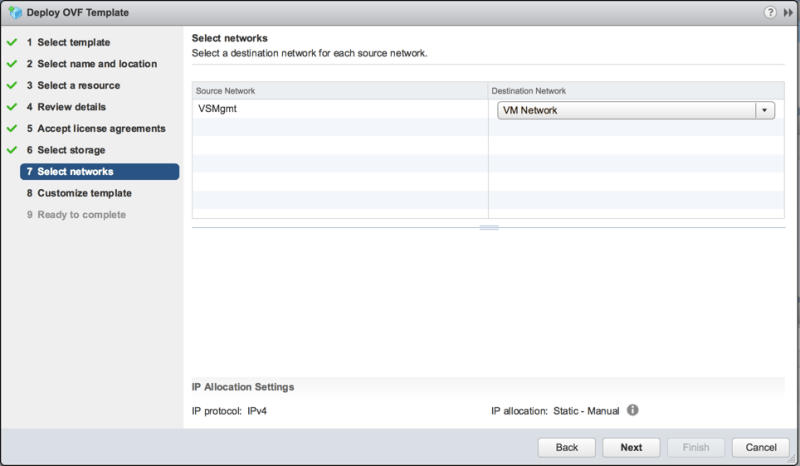

Select a network to connect the vNic to. Click Next.

man06

On the customize template page, provide DNS, IP address, Hostname. etc. Click Next.

man07

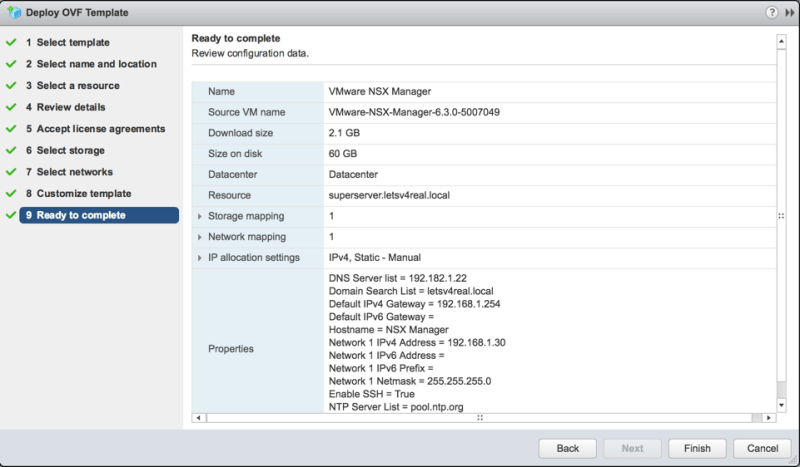

Review your settings. Click Finish.

man08

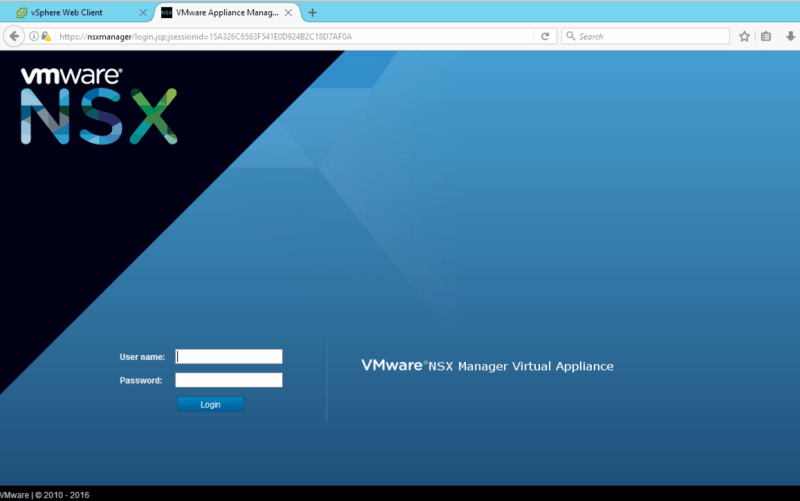

Open a internet browser and browse to the IP address or FQDN that you configured for the NSX Manager. Enter the admin username and password. Click Login.

man09

Now we want to begin making our registration with the vCenter server. To begin, click Manage Appliance Settings

man10

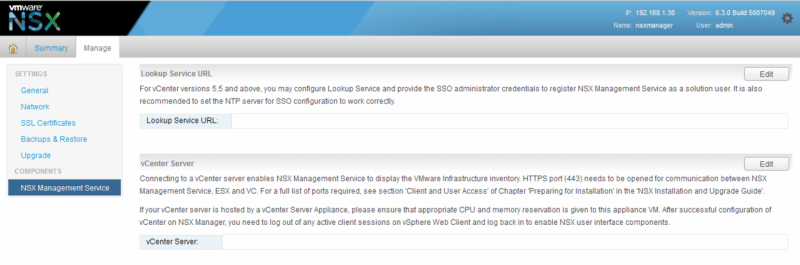

Under the Manage tab, click NSX Management Service. Click Edit by Lookup Service URL.

man11

Here we will enter in the IP or FQDN of our vCenter service if you are running a vCenter with a embedded database. If you are running a vCenter with a External PSC then you will need to enter the IP of FQDN of the external PSC. Also, provide the SSO administrator username and password. Click Ok.

man12

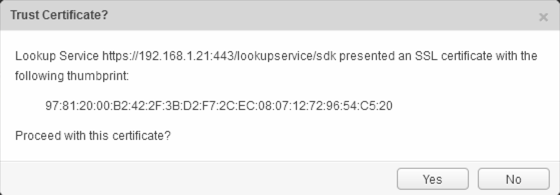

Accept the certificate by click Yes

man13

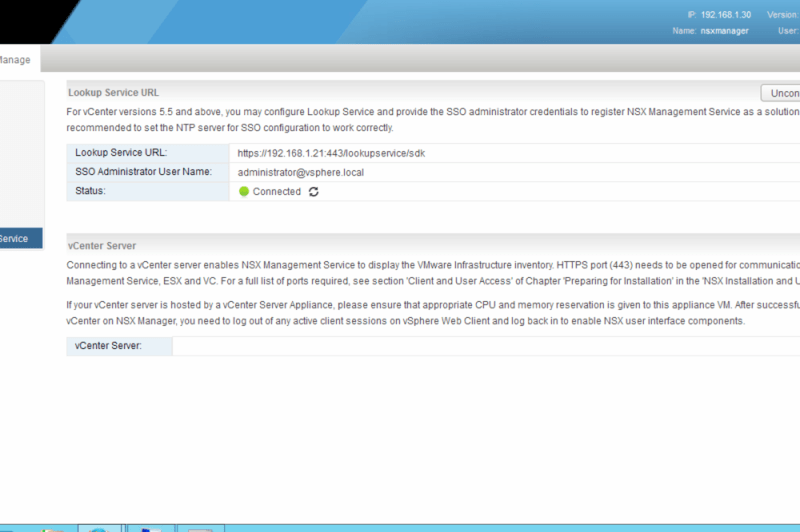

Now let’s register with our vCenter server. Click Edit by vCenter Server.

man14

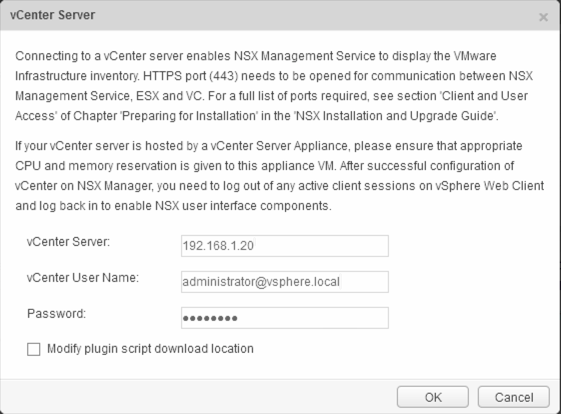

Enter the IP or FQDN of the vCenter server and the vCenter administrator username and password. Click OK.

man15

Accept the certificate by clicking Yes

man16

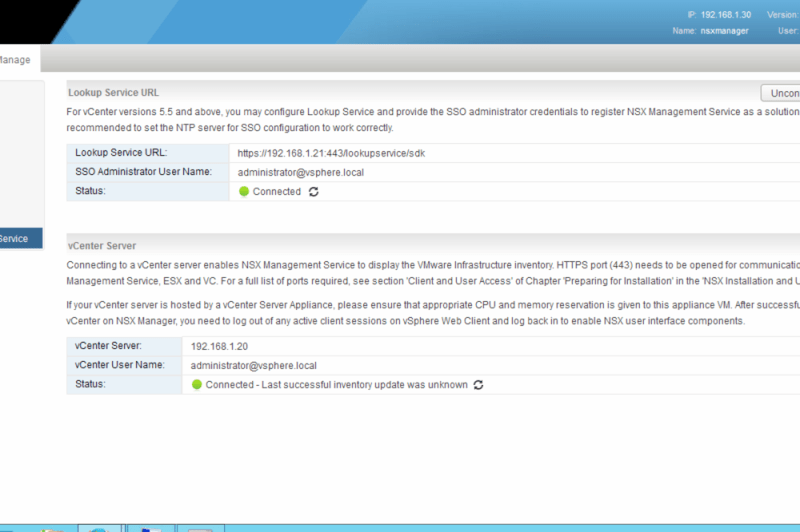

Once the Lookup service and vCenter server registration is complete, we will be able to see the Networking & Security icon on the vCenter home page. Log off of the NSX Manager.

man17

Log into the vCenter server and notice the new Networking & Security icon.

man18

Now we are ready to begin installing initial components and configuring the NSX environment.
